40KW Hybrid Solar Energy Storage System Installation in Farm


About this Solar Project

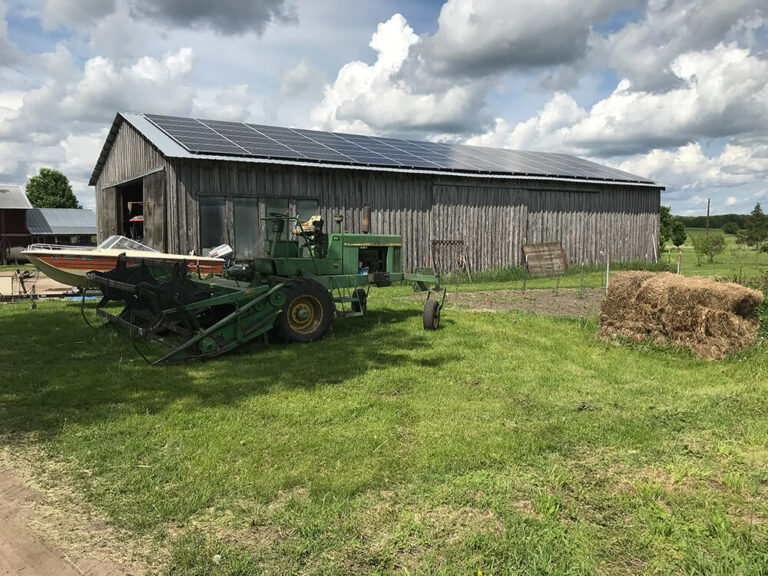

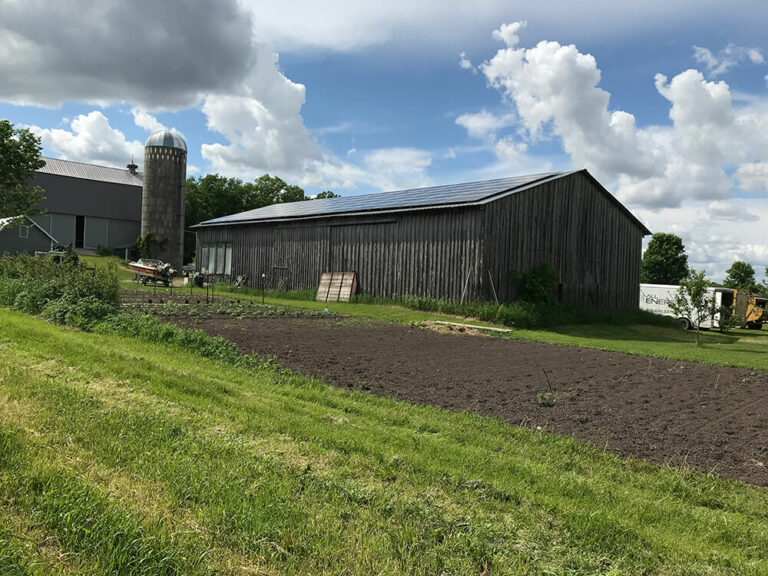

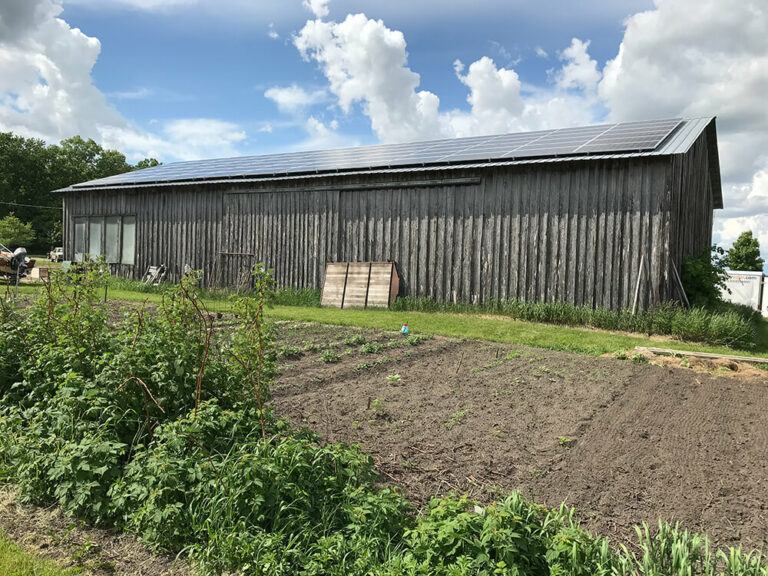

This solar system installed about 75 panels covering the entire roof. Modules have higher efficiency and lower attenuation rates.

The solar installation has generated enough electricity to fully power the farm for five months of the year, from June to September, and reduced electricity bills from March until May.

PictureNameSpecificationQuantity

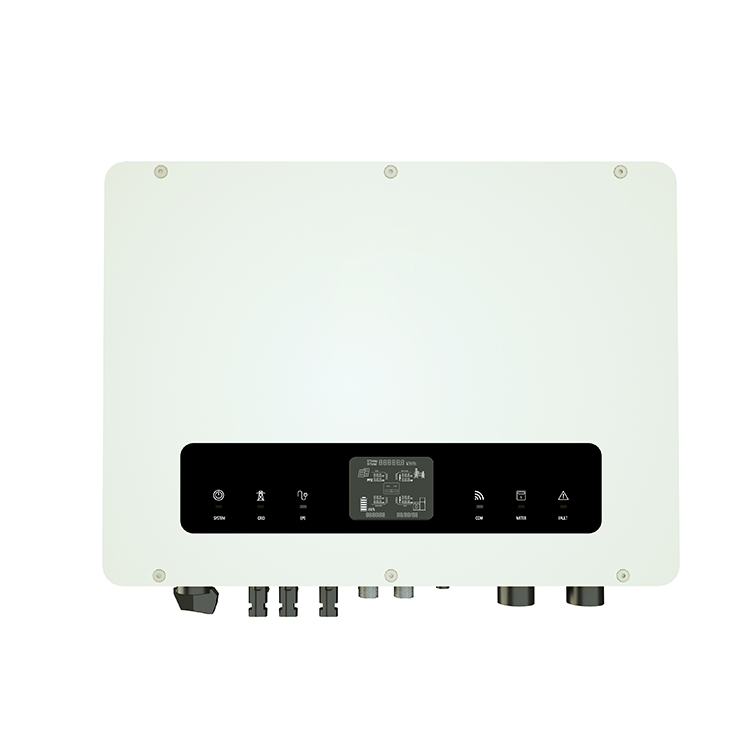

Hybrid Solar Inverter

Rated Power: 10KW

DC Input Voltage: 250V~850V

AC Output Voltage: 380V

Mppt Inpute Current: 12.5A*2

PV Input Voltage Range: 1000V

Size: 480*400*180 mm

Weight: 22 kg

4 pcs

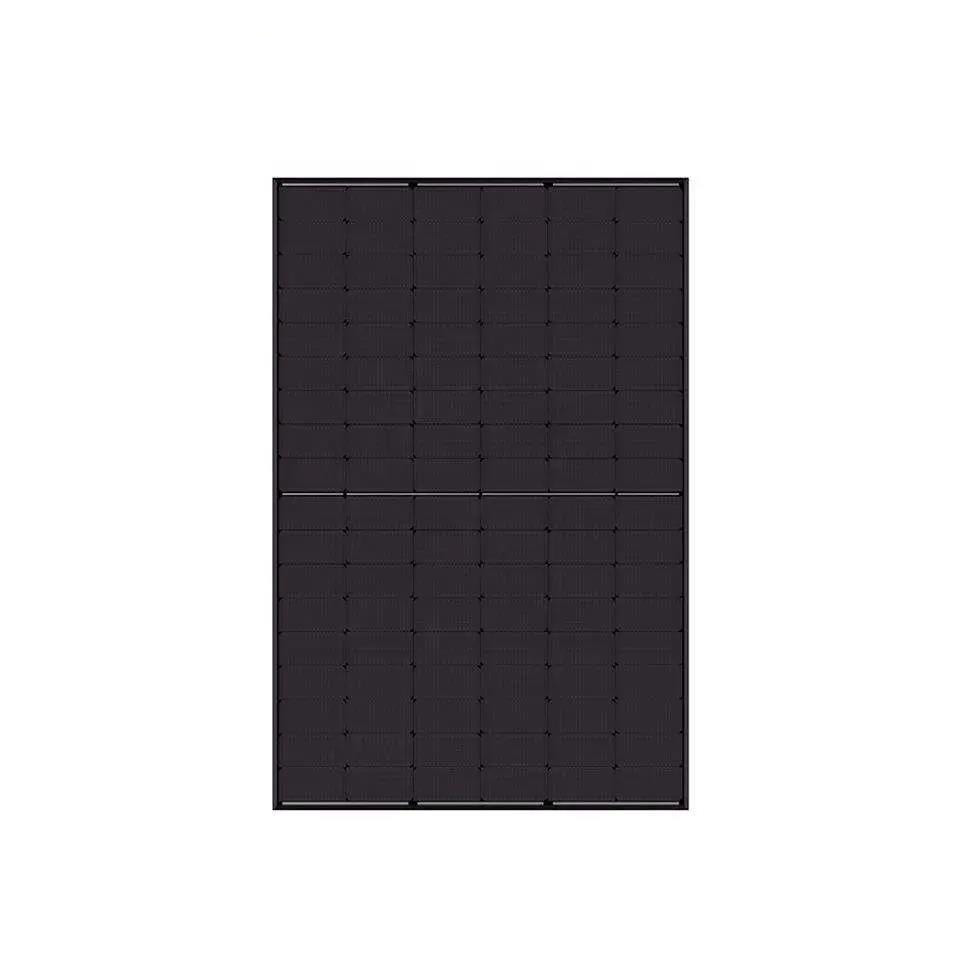

All Black Solar PanelMax. Power: 410wp

Voltage: 36.76V

Max. Working Current: 13A

Size: 1722*1434*30 mm/pcs

Net Weight: 20.5 kg/pcs

98 pcs

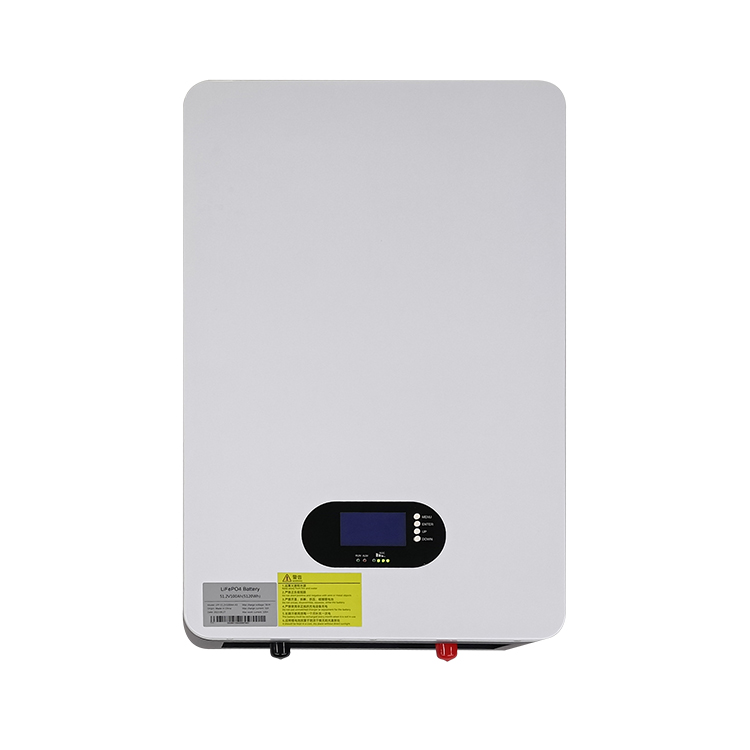

LiFePo4 Battery

Type: LiFePo4

Voltage: 51.2V

Capacity: 200Ah

Size:  660*480*165 mm

Net Weight: 49 kg

5 pcs

Mounting SystemInstallation quantity: 2 vertical

Angle not adjustable

Weight: 15 kg

49 pcs

PV CablesRed+Black1000 m
