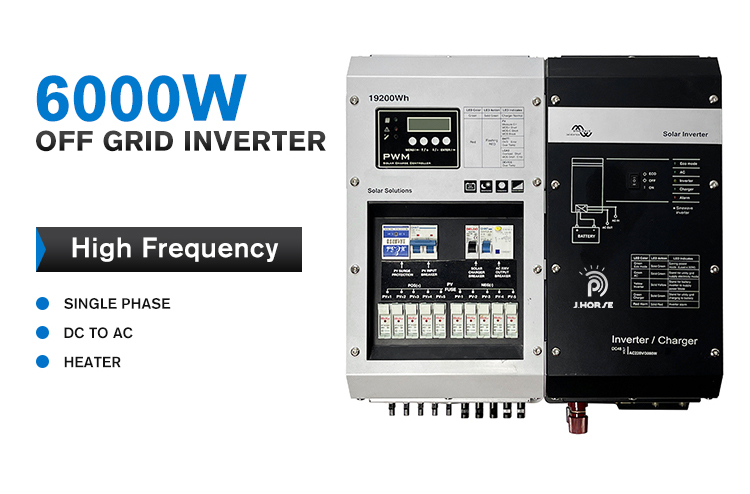

JHORSE Hybrid off grid solar inverter 6000w solar frequency inverter

State-of-the-art technologies have been utilized to develop and manufacture Hybrid off grid solar inverter 6000w solar frequency inverter.Having been tested multiple times,JHORSEis able to give out its best effect in the field(s) of Solar Inverters.

SEND INQUIRY NOW

Brand Name:: JHORSE

Certification:: CE,CCC,ISO9001,RoHS,SGS,TUV

Payment Terms:: L/C, D/A, D/P, T/T, Western Union, Money Gram

OEM/ODM:: Available

Delivery Time:: 15-20 Days

Start Port:: guangzhou ,shenzhen, zhuhai

SEND INQUIRY NOW

BRIEF INTRODUCTION

Describe

A frequency inverter is an electronic device which enables the conversion of an electrical variable ‘current’. In this case, the frequency inverter transforms an AC current with a certain (fixed) frequency into a voltage with variable amplitude and frequency. In short, this results in a voltage conversion. Frequency inverters can power a wide variety of equipment, such as: three-phase motors, pumps and air-conditioners. In three-phase motors, the speed and torque of the AC motor can be controlled by varying the frequency. This control does not restrict the performance of a three-phase motor, it just improves its efficiency. Such motors are often used in industrial environments, and are especially common in the drive technology field.

PRODUCT DETAILS

SYSTEM PARAMETER TABLE

Model	JH-NA6KK6
Power rating	6000W
Battery voltage	48V
Case size	6200210660
Net weight (kg)	70
Rough weight (kg)	73
Input
Phase position	L + N + G
Scope of mains input	110V:85-138VAC;220V:170-275VAC
Frequency range	45Hz〜65Hz
Output
Output voltage	Inverter mode: 110VAC / 220V ± 5%; main mode: 110VAC / 220VAC ± 10%;
Frequency range (main mode)	auto tracking
Frequency Range (Inverse mode)	50Hz/60Hz±1%
Overload (mains mode)	Municipal power mode: (100% 110%: 10 minutes; 110% 130%: 1 minute; 130%: 1 second;)
Overload (Inverse mode)	Inverse mode: (110% 110%: 30 seconds; 110% 130%: 10 seconds;> 130%: 1 second;)
Current peak ratio	3:1 max
Switching time	<10ms (typical load)
Wave form	pure wave
Productiveness	> 85% (80% resistive load)
Defective function	Battery over voltage and low voltage protection, overload protection, short circuit protection, overtemperature protection, etc
Maximum charging current	120A
Battery voltage	48V
PV input voltage range	48V:65V-150V
Maximum PV input power	48/5880W
Cooling-down method	Fan cooling
Environment condition
Operating temperature	0~40°C （Battery life is shortened in> 25 C）
Operation humidity	<95% and no condensation situation
Operate altitude	<1 000m (1% per 100 m max maximum 5000 m)
Noise	<58dB (1 m distance)
Manage
Display	LCD+LED
Computer communication interface	RS485/CAN（Optional）
