This 3 phase solar inverter supporting multiple parallel connections, power and capacity can be expanded Wide PV input voltage range 180V to 850V Support diesel generator access. Support on/off-grid automatic switching function to ensure uninterrupted power when important loads are off-grid.
OVERVIEW
Our series of three phase high voltage inverters is a high quality hybrid solar inverter that converts solar energy into AC power and stores the energy into batteries.
MPPT solar hybrid inverters are used with lead-acid and LiFePo4 type high-voltage batteries, which can be used to optimize self-consumption stored in batteries for future use or fed into the public grid. The working mode depends on the photovoltaic energy source and the user's preference. It can use energy generated by batteries and inverters (generated by photovoltaic) to provide emergency power in the event of a grid loss. Parallel capability is also available (off-grid models).
FEATURES
1. PV & Storage System
Integrated PV and energy storage, support for a variety of batteries,integrated EMS Smart energy management system.
2. Friendly & flexible
Supporting multiple parallel connections power and capacity can be expanded;
Wide PV input voltage range 180V to 850V.
3. Safe & Reliable
IP65 protection, all-aluminum design, built-in lightning protection, high precision leakage protection;
Passed CE, lEC and grid connection test certification in Europe South Africa Germany and other countries.
4. Smart & Simple
Support intelligent EMS management function;
Support on/off-grid automatic switching function to ensure uninterrupted power when important loads are off-grid;
Support diesel generator access.

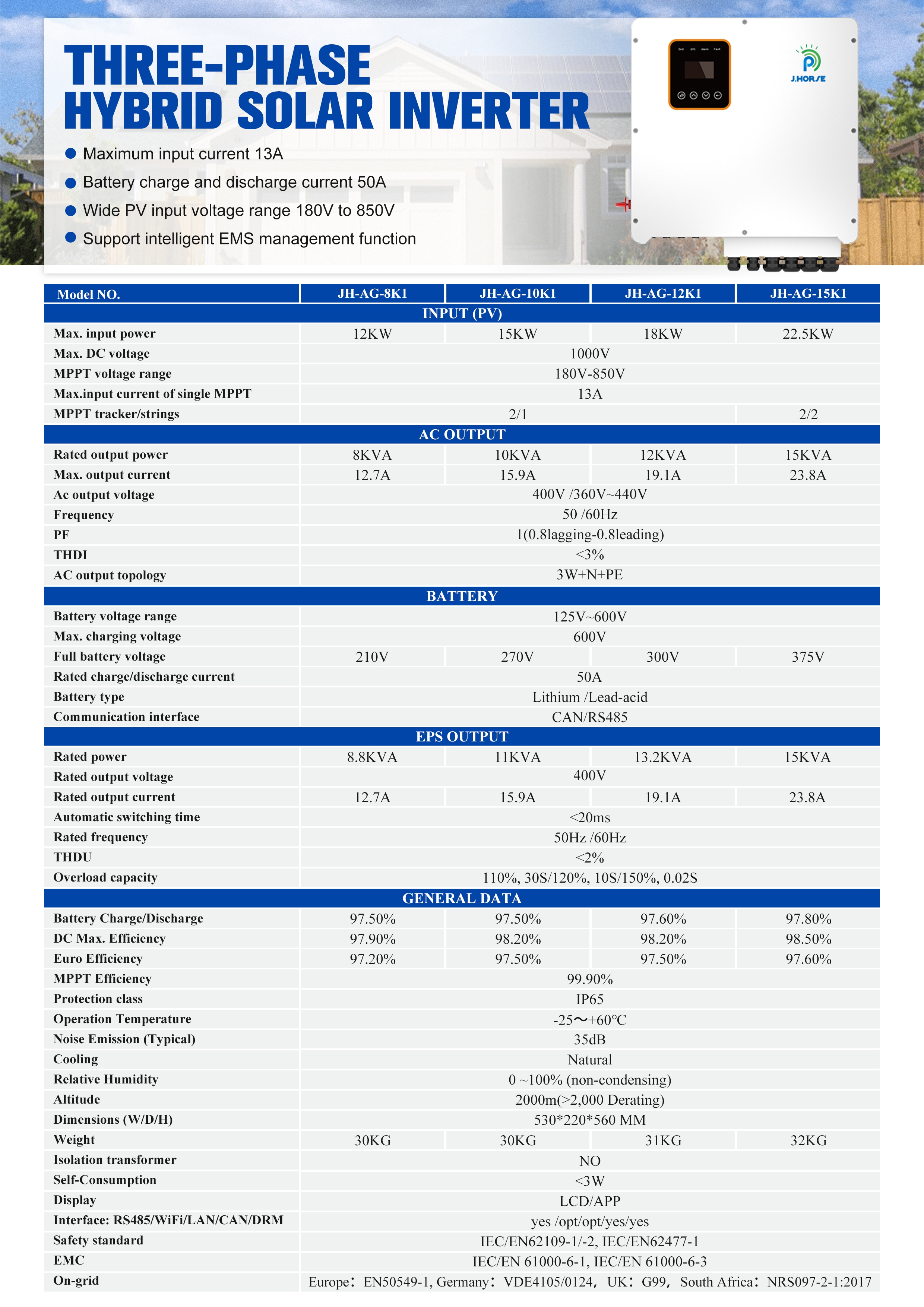

DATA

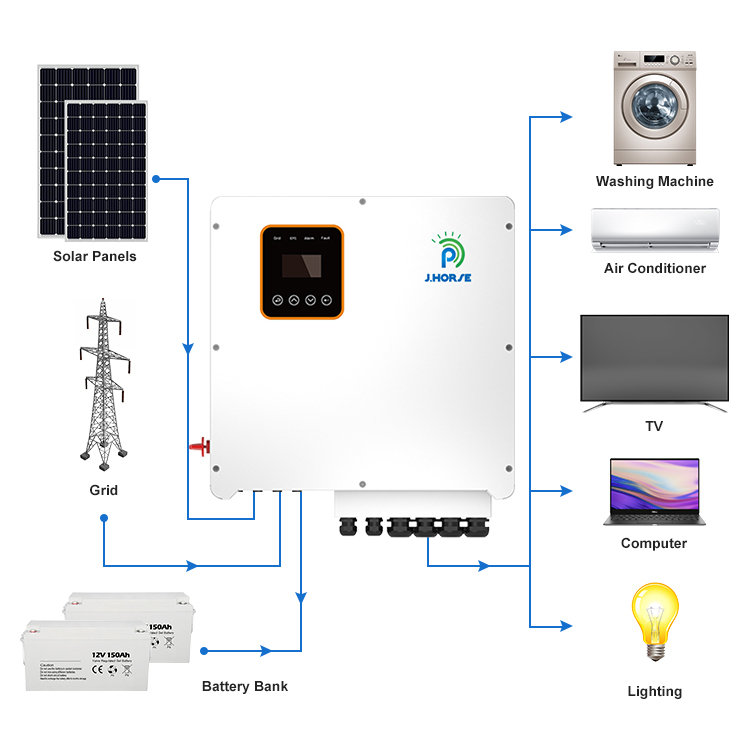

DIAGRAM
HOME SOLAR SYSTEM
